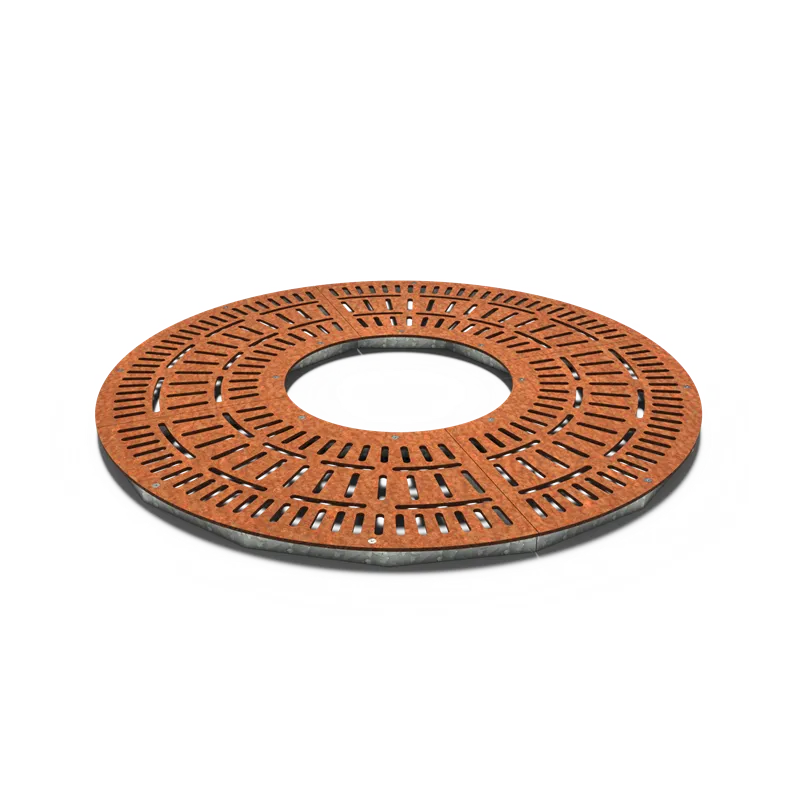

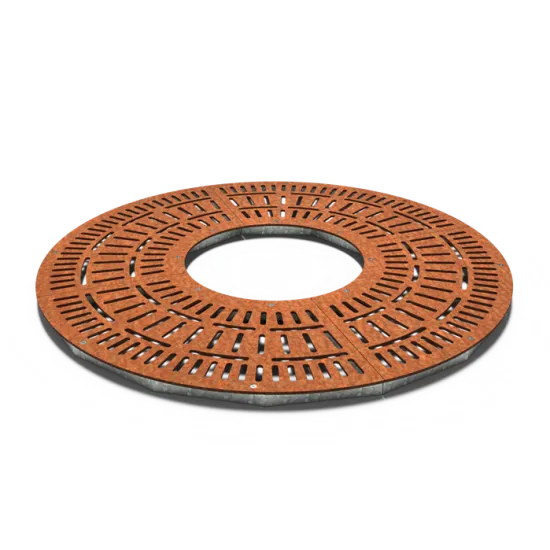

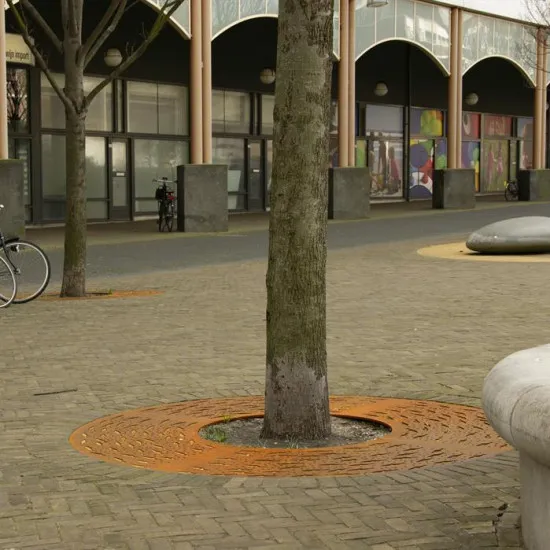

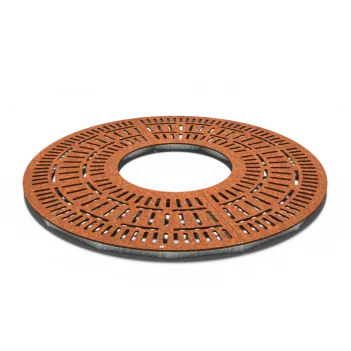

1490x10 Tree Grates Corten TGGR.R1490.6.Ct

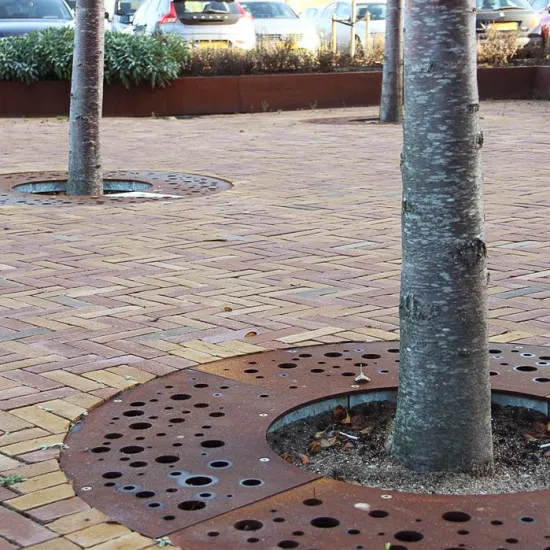

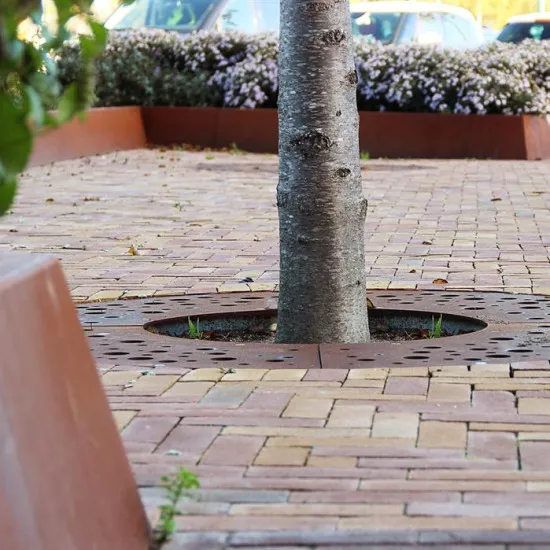

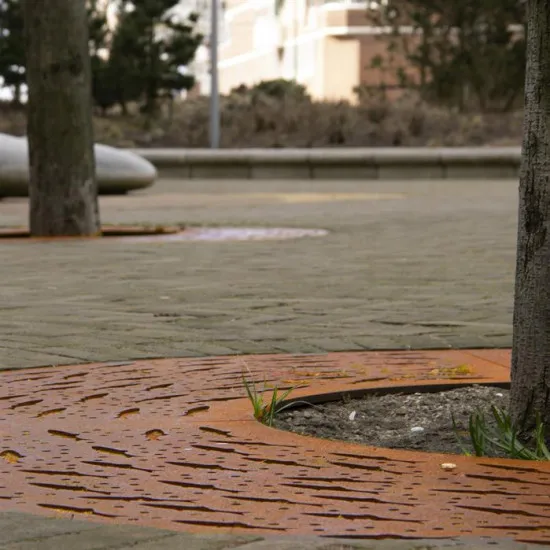

Tree grates protect and supply the roots with moisture

Product description

By using wood grilles, you ensure safety in the first place. Ground level
around the trees remains the same, so there is no dangerous situation. The trees themselves are also protected. Wood gratings
they do not damage the trunk and roots of trees. Tree gratings also ensure that
water and oxygen can easily reach the roots. Basic frame
prevents stresses and damage to the roots.
Thick Corten steel (10mm) is ideal for the production of tree trellis.
Choose from a wide variety of patterns, but too
we can quickly implement your wishes in consultation with
you. We can produce our own graphic patterns and specific dimensions
s (you need to provide a DXF file with the required pattern).
Specifications

Important

• We do not provide a guarantee for powder coating of wood grates.
• All packaging materials must be removed from the products immediately.
• Corten steel should never be constantly wet, it should have good drainage and ventilation in all situations.
• Products will be delivered stainless.
• We only use Corten steel type S355JOWP.
• Coastal areas: We do not recommend using Corten steel within 2 km of the coastline.
• Rust residues may peel off the product during the airing process.
• Drilling / grinding into the material is prohibited.
Maintenance
• Annual cleaning by removing dirt with clean tap water.
Note! Do not use a high pressure washer.

General

Our grates for trees are equipped with:
• EN-1433 load capacity
The grilles comply with class A, if fitted
according to the rules.
Lattices must be supported by
load-bearing sand, split or
gravel
• 5-year warranty (expiring)
Material
Grids
• 10 mm Corten steel
• Galvanized steel + 2 layers of powder coated

Frame

• Galvanized steel box profile
• Frame size: 50x25x2 mm
and 50x40x2 mm.
Options
• A recess on the ground
• Ventilation cutout
• Unique laser pattern
• Non-slip coating

Placement

1. Place load-bearing concrete feet and position them for a solid foundation. If not done reliably, it can create stresses in the product that may cause damage the product. 2. Place the two-piece frame and screw the frames with the materials provided. Note! First, loosely tighten all the screws, then which can be tightened one after the other. 3 Fill up to the grate with the carrier shell, it maintains class A. 4. Finish the pavement. Tip! In order to obtain perfect drainage around the tree, we recommend that you lay the pavement slightly higher than wood grate.

5. Place the four corners of the wood grate on the frame so that the holes align. 6. Install all screws first and then you can tighten them. Note! First, loosely tighten all the screws, then which can be tightened one after the other.

Tree guards

By using tree covers, you protect the tree from the elements. By combining tree guards with our tree grilles, you offer: a comprehensive solution, both in terms of aesthetics and functionality. Simplicity makes ours functional and robust tree guards. Proper construction and material This makes the tree guards perfect for public spaces.
